| Appliion | C A T Excavator Electric Parts |

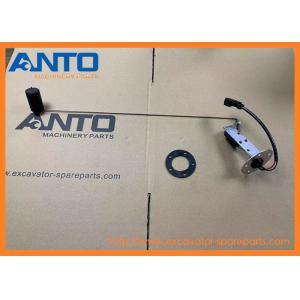

| Name | Fuel Lever Sensor |
| Parts No | 2382227 238-2227 |
| Model | 311C 320C 320D LRR 320D RR 325C 345B II |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
EXCAVATOR 311C 320C 320D LRR 320D RR 325C 345B II
MINI HYD EXCAVATOR 305.5 306 307B 307C
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | Z | [1] | TANK AS-FUEL |
| 2 | 5I-4510 | [1] | STRAINER | |
| 3 | 086-1781 | [1] | CAP AS (FUEL TANK) | |
| 4 | 238-2227 | [1] | SENSOR AS-FUEL LEVEL (FUEL) | |
| 102-8802 | [1] | KIT-RECEPTACLE (2-PIN) | |
| | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 9X-3401 | [2] | PIN-CONNECTOR (16-GA TO 18-GA) | |
| 5 | 4I-0378 | [1] | GASKET-RUBBER | |
| 6 | 095-0736 M | [5] | SCREW-MACHINE (M5X0.8X10-MM) | |
| 7 | 8T-0328 | [5] | WASHER-HARD (5.5X10X1-MM THK) | |
| 8 | 223-3095 | [1] | GAUGE GP-SIGHT (FUEL LEVEL) | |
| 237-8526 | [1] | TUBE | |
| 236-3258 | [2] | BLOCK | |
| 236-3259 M | [2] | BOLT-SPECIAL | |
| 6F-4855 | [4] | SEAL-O-RING | |
| 095-1519 | [4] | SEAL-O-RING | |
| 9 | 102-5758 | [1] | END-HOSE | |
| 10 | 128-4411 | [1] | VALVE AS (FUEL SHUTOFF) | |
| 11 | 003-7764 | [1] | END-HOSE | |
| 12 | 4I-0379 | [1] | VALVE-MANUAL | |
| 13 | 095-1388 | [1] | CLAMP-HOSE | |
| 14 | 5P-1442 E | | HOSE (9-CM) | |
| 15 | 004-6683 | [1] | FITTING | |
| 16 | 7I-1505 | [1] | LINER | |
| 17 | 146-6962 | [1] | LINER | |
| 18 | 3B-0551 | [1] | PLUG-PIPE | |
| 19 | 9S-6130 | [1] | PLUG | |
| 20 | 2S-4078 | [1] | SEAL-O-RING | |
| E | | ORDER BY THE CENTIMETER |
| M | | METRIC PART |
| Z | | NOT SERVICED SEPARATELY |
- More sensor parts supplied to C A T machine
| 2380112 SENSOR GP-TEMPERATURE |
| 120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3,
140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 226B, 232B,
236B, 236B3, 242B, 242B3, 246C, 247B, 252B3, 256C, 257B, 257B3,
25... |
|
| 2380120 SENSOR GP-SPEED |
| 120M, 120M 2, 12M, 2384C, 2470C, 2484C, 2570C, 2670C, 311D LRR,
312D, 312D L, 312E, 312E L, 313D, 314D CR, 314D LCR, 314E CR, 314E
LCR, 315D L, 316E L, 318D L, 318E L, 319D, 319D L, 319D LN, 320D,
320... |
|
| 2660136 SENSOR GP-PRESSURE |
| 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L,
319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L,
320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA,
C175... |
|
| 1060178 SENSOR AS-PRESSURE |
| 311B, 312B, 312B L, 315B, 315B FM L, 315B L, 317B LN, 318B, 320B,
320B FM LL, 320B U, 322B, 322B L, 322B LN, 325B, 325B L, 330B, 330B
L, 345B, 345B II, 345B II MH, 345B L, 365B, 365B II, 365B L,
385B,... |
|
| 1573182 SENSOR AS-PRESSURE |
| 312C, 312C L, 314C, 315B L, 315C, 317B LN, 318B, 318C, 320C, 320C
FM, 321B, 322C, 322C FM, 325C, 325C FM, 330C, 330C FM, 330C L, 330C
MH, 365B, 385B, 5090B |
|
| 3244131 SENSOR GP-SPEED |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR,
314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C,
320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D
LN... |
|
| 1967975 SENSOR GP-TEMPERATURE |
| 311C, 312C, 312C L, 314C, 315C, 318C, 319C, 320C, 320C FM, 320C L,
320D, 320D LRR, 321C, 323D L, 323D LN |
|
| 1636700 SENSOR GP-FUEL LEVEL |
| 1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 312C, 312C
L, 312D, 315C, 315D L, 318C, 319C, 319D, 319D LN, 320C, 320C FM,
320C L, 320D, 320D FM, 320D L, 320D LN, 321C, 321D LCR, 322C, 322C
F... |
|
| 2218859 SENSOR AS-PRESSURE |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 313D2,
314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 319C, 319D, 319D L,
319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D
GC,... |
|
| 2380118 SENSOR GP-PRESSURE |
| 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier
ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear
reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler
roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel
injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket
etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder,
final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block,
cylinder head, crankshaft, turbocharger, fuel injection pump,
starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link,
Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller,
seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after
cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint,
fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor,
Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade
experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or
by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies
we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's
destination city air port.
3. By Sea: Delivery from the Huangpu port .
